DPBRTHERM01-B

267,00 VAT EXCLUDED

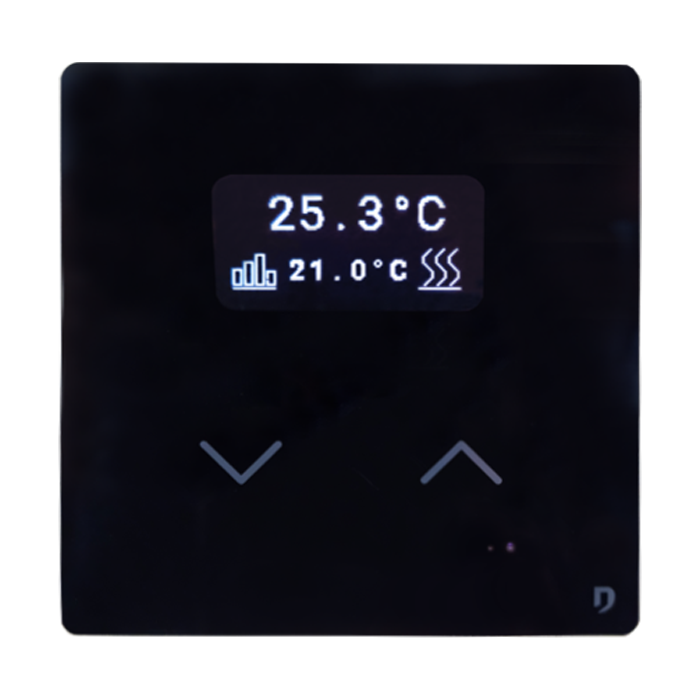

Rainbow - Thermostat - Black

Description

The DPBRTHERM01 module is a thermostat in the Rainbow range. It is equipped with a temperature sensor, two capacitive buttons, a proximity sensor and an OLED display.

Specifications

Power supply: bus
Power consumption: max. 45 mA
Display resolution: 128 x 64 px.
Temperature sensor: all controllers are available
Bus connection via quick connection
Dimensions: 85 L x 85 W x 12 D mm with bracket (3 mm)
Operating temperature: 5 to 45 °C
Colour: Black (B) or White (W)

Technical diagram

aDPBRTHERM01 wiring diagram

SKU: 5425014392760-1-1 Categories: , Label:
